JST6110 JRready Deutsch DT Connector Kit, with Crimp Tool JRD-HDT-48

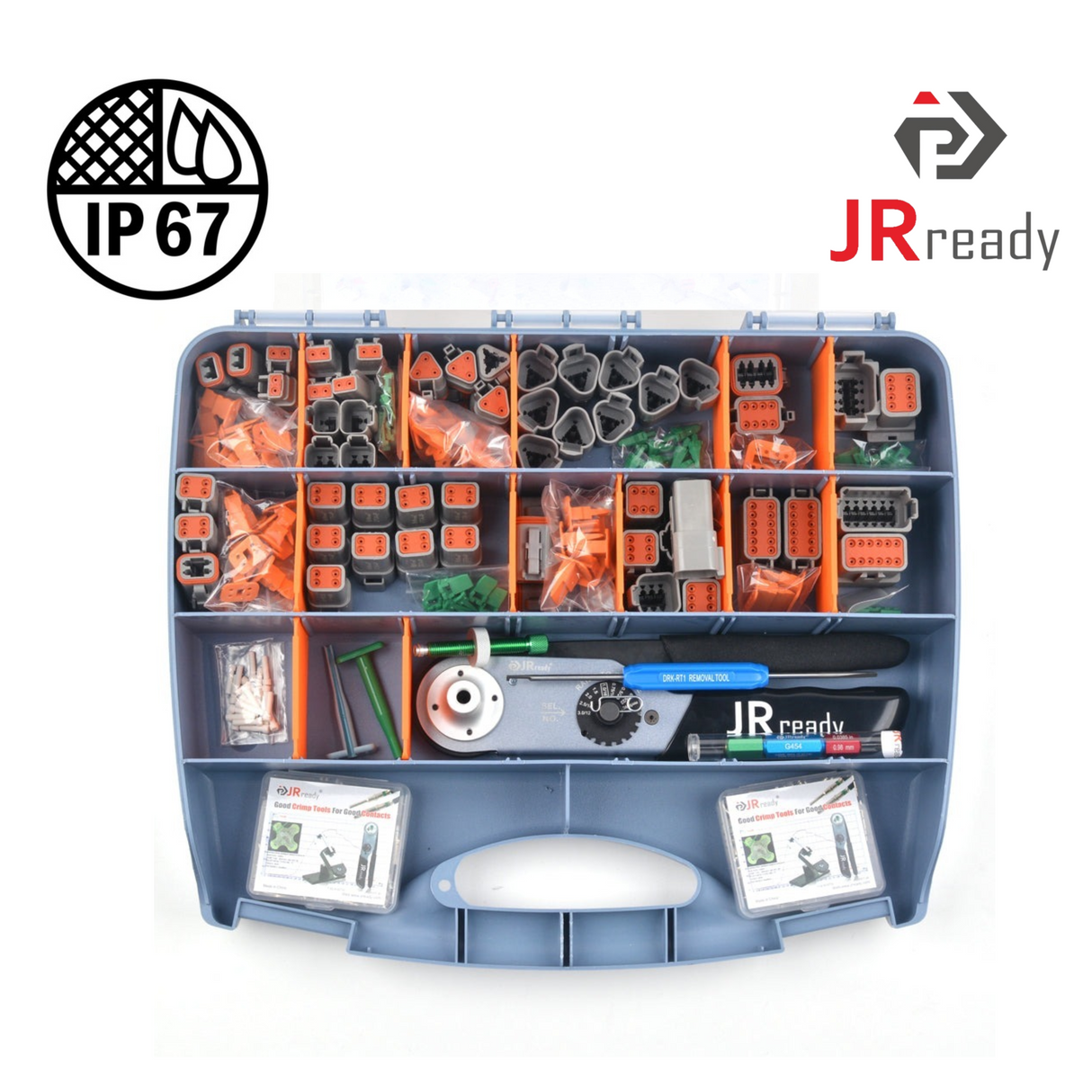

JRready JST6110 Deutsch DT Connector and Crimp Tool Kit, an all-inclusive set for your connector needs.

Content:

DT connectors with wedge locks: 2 to 12 cavities, rated to 13-Amp, continuous capacity per pin pair,
16# solid contacts *168 pairs
Seal plugs for unused terminals *20
De-pinning tools *2
DRK-RT1 Connector disassembly tool *1,
G454 calibration go-nogo gauge *1
JRD-HDT-48 crimp tool *1

2-pin DT Connectors: 12 pieces
3-pin DT Connectors: 9 pieces
4-pin DT Connectors: 9 pieces
6-pin DT Connectors: 6 pieces
8-pin DT Connectors: 2 pieces
12-pin DT Connectors: 2 pieces

Connectors:

Number of Cavities: 2, 3, 4, 6, 8, 12 cavity

Temperature: -40~125°C

Flame Retardant Grade: UL94 V-0
Waterproof IP Rating: IP67

Recommended Wire Insulation Diameter
2.23mm-3.68mm

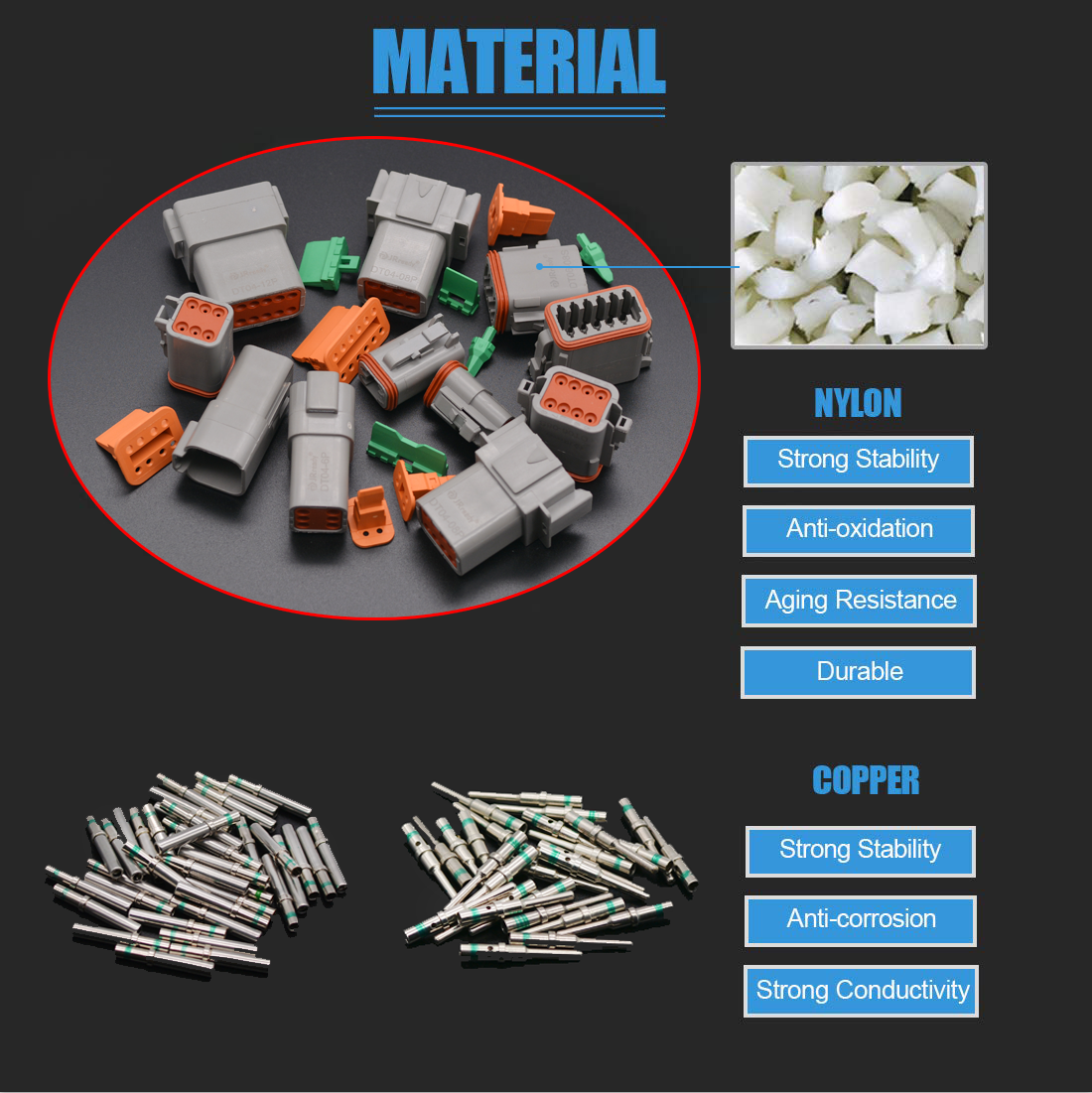

Material: PA66 nylon, ensuring longevity and reliability for long-term use.

Strong stability for wide application in cars, motorcycles, trucks, boats, and more.

Facilitates convenient connections and disconnections.

Solid Contacts:
Exhibits strong stability and excellent conductivity.
Easy to crimp with wires and install into the connector.

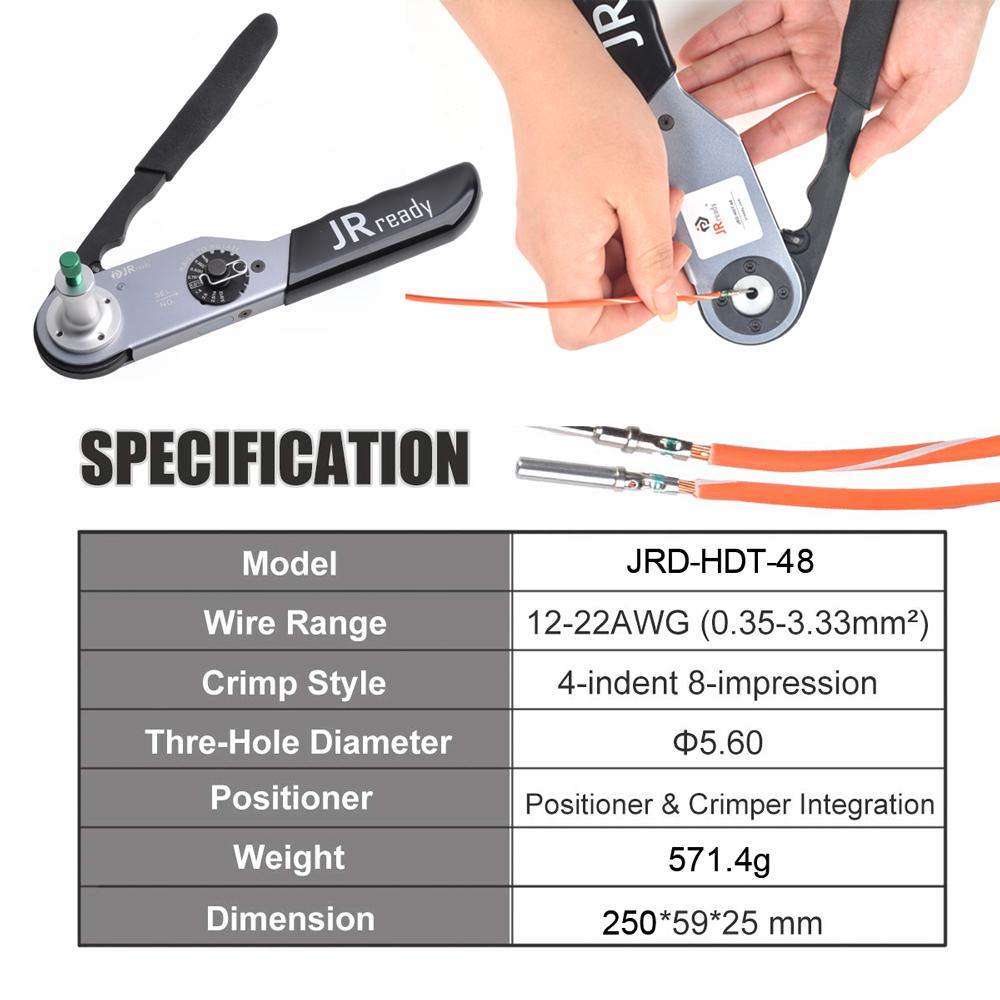

Crimp Tool (JRD-HDT-48):
Equivalent to TE HDT-48-00 crimp tool, suitable for crimping 12#, 16#, 20# wires.

Wire Crimp Range: 12-22 AWG (0.35-3.33mm²).

Positioner Style: Manually adjusting (manual adjust screw between contact sizes)

Note: You have the option to elevate your toolkit by choosing the Turret-Style Crimp tool! Please feel free to contact us to proceed with the upgrade.
