Deutsch Connectors
20+ Years of Excellence: Crafting High-Quality Deutsch Connectors
JRready has been a leading manufacturer of Deutsch connectors since 2003, boasting over 20 years of dedicated experience and continuous refinement. Our commitment to excellence ensures that we confidently deliver the highest quality products to meet and exceed the expectations of our valued customers.
All our connectors meet IP67 and UL94 V-0 standards and they are used in different industries, such as aviation, aerospace, electric vehicles, marine, automotive, motorcycle, truck, nuclear power, and oil exploration.

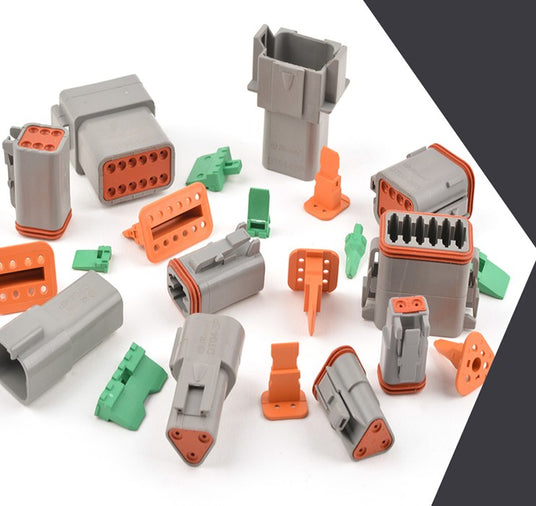

DEUTSCH DT Connector Family
-
Deutsch DTM Connectors
Physical Size: Small
Contact Size: 20 (max 7.5 amps)
Wire Size: 16-22 AWG
Recommended Wire
Insulation Diameter: 1.35mm-3.05mmNumber of Cavities: 2, 3, 4, 6, 8, 12 cavity
Waterproof IP Ratings: IP67
Flame Retardant Grade: UL94 V-0
Temperature: -40~125°C
-
Deutsch DT Connectors
Physical Size: Medium
Contact Size: 16 (max 13 amps)
Wire Size: 12-20 AWG
Recommended Wire
Insulation Diameter: 2.23mm-3.68mmNumber of Cavities: 2, 3, 4, 6, 8, 12 cavity
Waterproof IP Ratings: IP67
Flame Retardant Grade: UL94 V-0
Temperature: -40~125°C
-
Deutsch DTP Connectors
Physical Size: Large
Contact Size: 12 (max 25 amps)
Wire Size: 10-24 AWG
Recommended Wire
Insulation Diameter: 3.40mm-4.32mmNumber of Cavities: 2, 4 cavity
Waterproof IP Ratings: IP67
Flame Retardant Grade: UL94 V-0
Temperature: -40~125°C
Technical Datasheet Download
Download All

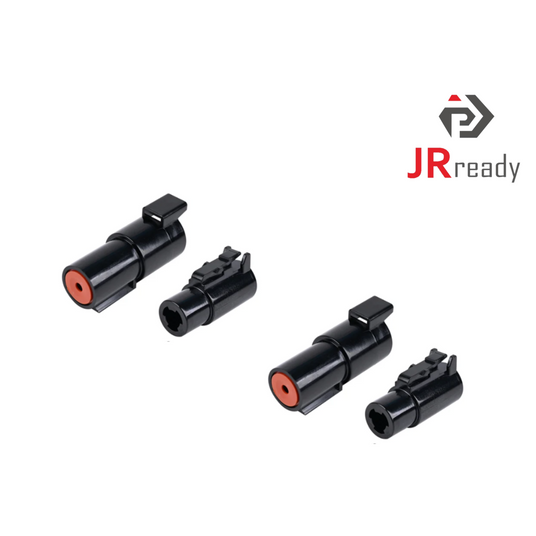

DEUTSCH DTHD Connector Series
DTHD connectors are single-terminal connectors designed for heavy-duty applications. They are easy to install, environmentally sealed, and compact, providing a straightforward, field-serviceable alternative to splicing. These connectors are made from Polyetherimide (PEI) material and feature an integrated latch for secure mating. Additionally, they come with rubber sealing rings to ensure waterproofing and can be mounted or used in-line.
